Simpson Electric Company, Inc. has been a leader in the panel and test instrument industry since 1927. We have extensive expertise in producing quality analog and digital meters and test equipment used in a wide range of industries and applications. In addition, we offer circuit board assembly, cable assembly, lead assembly, shunt assembly, sand blasting and screen printing.

505 High Voltage Insulation Tester

  • Eight Test Voltages: 100, 250, 500, 1000, 1500, 2000, 2500, and 5000 VDC
  • High Sensitivity, Direct Resistance Reading to 1T Ohm (1,000,000 M Ohms), no Multipliers
  • Voltage Measurement to 2000 V AC/DC
  • Automatic Discharge of Capacitive Devices Under Test by Measuring Instrument
  • Battery Powered, with Battery Test and Battery Charge Indicator
  • 2 LED Lamps Indicate Desired Measurement Scale
  • Optional Guard Cable Minimizes Surface Leakage Errors
  • Rugged Tester Design for Industrial Applications with Padded Carrying Case for Extra Protection

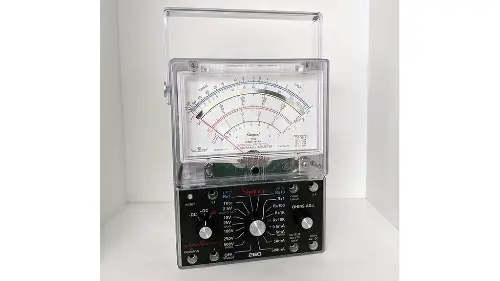

260-6XLPM Clear Low Power VOM

  • Traditional Simpson 260-6XLPM Multimeter in clear case showing beautiful detail
  • Clear Polycarbonate case constructed of more impact resistant ABS
  • Provides visual inspection of components
  • Comes with removable knobs and overlay
  • Clear case makes it an excellent teaching aid
  • Accurate in-circuit tests without risk to components or causing digital circuits to switch states
  • Instant trend information for quick positive “Yes/No” checks
  • 2 extra “low power” Ohms ranges (Rx1 and Rx10)
  • Mirrored scale for parallax reduction
  • Resettable overload circuit protection relay
  • Includes 9V and 1.5V batteries and probe test leads with alligator clips
  • Hand crafted with pride
  • MADE IN THE USA

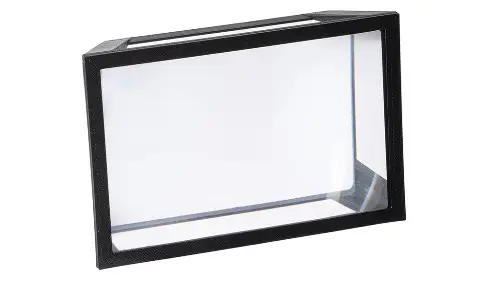

Magnivue

  • Magnifies meter display for easy read
  • Easy, friction fit installation around the meter bezel
  • Increases accuracy in measurement change monitoring
  • Removeable PVC lens for easy cleaning
  • Ultra-light weight
  • Durable, flexible frame
  • Hand crafted with pride
  • MADE IN THE USA

Current Transformers

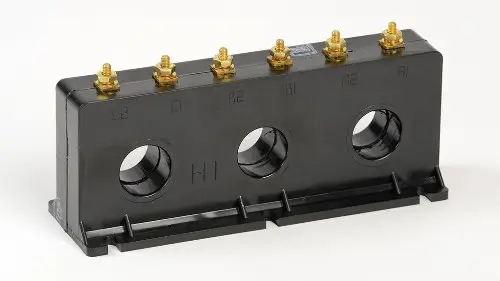

3 Phase AC Current Transformers

  • To be used with GIMA three phase meters
  • Equipped with terminals to permit easy connection to the GIMA units
  • These terminals are #8-32 brass studs and come with a flatwasher, lockwasher and a regular nut (leads are not provided).

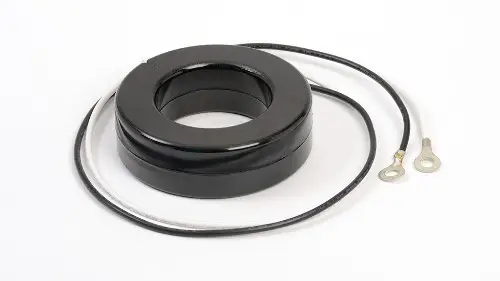

Donut Current Transformers

  • Donut and Terminal Style that Reduce High AC Current Signals to 5 AC Amperes
  • Model 186 Reduces High AC Current Signals to 10 AC Volts

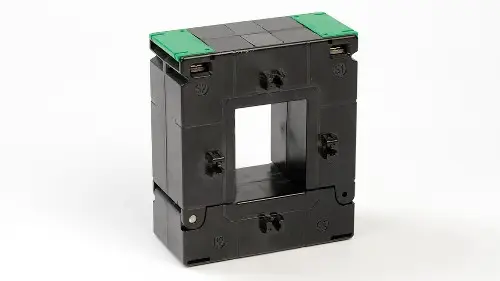

Split Core Current Transformers

Offer a cost effective and efficient method by which the current can be measured without the need to break the conductor, thereby reducing installation and commissioning time.

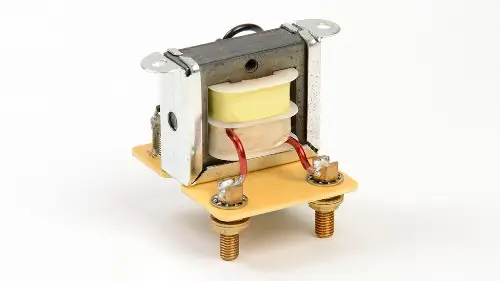

Model 186 Current Transformer

  • Optimal for remote sensing of AC current signals
  • Converts AC current signal to 0-10 ACV signal
  • For use with rectifier type analog panel meters or digital indicators
  • Perfect for low current measurement where a donut current transformer would not sense a signal

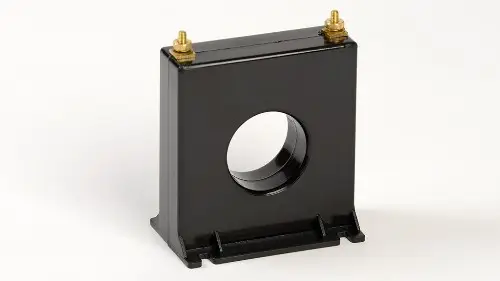

Current Transformers with Terminals

  • Reduces high AC current signal to 5 amp AC signal
  • Use with analog digital indicators
